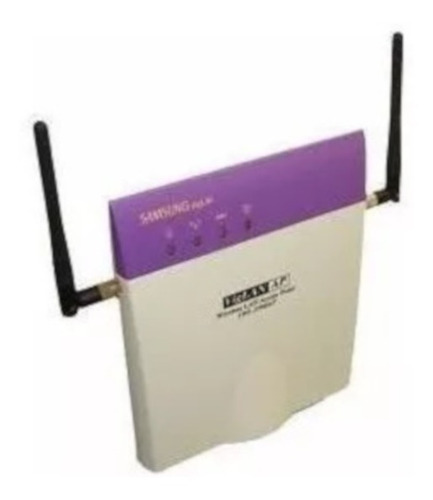

Access Point Wireless Ap Samsung Swl-3300ap Novo Na Caixa

Descrição

AP de uso profissional, de longo alcance, com antenas removíveis.

Especificações técnicas:
Wireless Network Architecture: IEEE 802.11b(DSSS)
Wired Network Architecture: Ethernet(10/100Mbps)
Power Adapter: 96~264 VAC 50/60Hz to 5VDC 1.5A
Certifications: FCC part 15/CE/VCCI/JATE/MIC(Korea)
Data Rate: 1, 2, 5.5, 11Mbps Auto-fallback features configuration of the basic date rate
Long/Short Preamble: Short/Long Preamble supported
Powersave: Compiles with IEEE 802.11 PS(Powersave)
Beacon, DTIM Interval: Configuration of the Beacon, DTIM Interval
Roaming IEEE 802.11: Compliant
Security: 64-bit and 128-bit WEP Encryption supporting up to 4 WEP Keys
Local Configuration: Serial EIA-232
Remote Configuration: http, Telnet, SNMP - AP manager for Microsoft Windows95(OSR2)/98/98SE/2000/NT/XP/Vista/7/8/10
Firmware Upgrade: Upgrade via Serial/Ethernet Interface
Automatic Searching AP: Easy to search AP(don’t need to be aware of its IP address)
SNMP Compliance: MIB I, II and 802.11 MIB
IP Sharing: NAT(Network Address Translation) All station can share one unique IP address
IP Auto-Configuartion: DHCP Server/Client Feature
Wireless Bridging(Optional): Extend the Wireless Networking using wireless bridging
Filtering: Ethernet Frame Type Filtering
Access Control: Ethernet Address Filtering
Max. Association: Configuration of the Maximum number of stations
Radio:
- 2.4 GHz (2.4 ~ 2.4835 GHz)
- 11 Channels(US, Canada)
- 13 Channels(ETSI, Korea)
- 14 Channels(Japan)
Receive Sensitivity: -84dBm at 11Mbps
Cell Coverage:
- Open space : 150m(500ft) at 11Mbps, 200m(660ft) at 2Mbps
- Closed Office : 30m(100ft) at 11Mbps, 50m(160ft) at 2Mbps
Output Power: Typical. 17dBm(50mW)
Storage Temperature: -25 ~70C(13 ~ 158F)
Operating Temperature: 0~55C
Humidity: 95% Non-condensing
WLAN Slot Interface: PCMCIA Release 2.1(3.3V, 5V)
Wired Network Connection Type: 10/100BaseT(RJ-45)
Serial Interface: EIA-232
Antenna Type:
- Integrated dual patch antenna supporting diversity(PC card integrated)
- External dipole antenna with SMA reverse connection
LED Indicator: Power/Link(Wired)/Activity(Wireless) status
Power Consumption (mm):
- Wired Communication : MAX 550mA±20mA
- Wireless Communication : MAX 1.0A±20mA
Dimensions: 176mm×153mm×50mm(6.92”×6.02”×1.96”)
Weight: 370g(0.81ld, Excluding the Power Adapter) 400g(0.88ld, Excluding the Power Adapter)
