Teclado Capacitivo 16 Teclas Ttp229 I2c Gng Atmega Arduino

Descrição

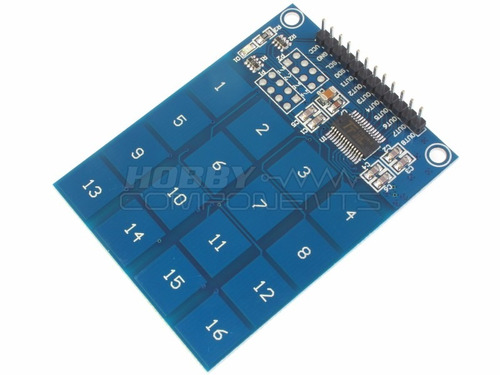

Teclado Capacitivo 16 teclas TTP229

ESPECIFICATION
Operating voltage:2.4V~5.5V
Built-in regulator
Stand-by current At 3V, and sleep mode slow sampling rate 8Hz:
=> Typical 2.5uA for 16 input keys
=> Typical 2.0uA for 8 input keys
8 Key or 16 key modes
Separate outputs to 8 keys in 8 key mode
2 wires serial output interface for both 16 key and 8 key mode
Outputs can be set to CMOS/OD/OC with active high/low
2 Wires serial interface can select active high or low by option
Optional Multi-key or single-key
Provides two kinds of sampling rate: slow sampling rate 8Hz and fast sampling rate 64Hz at sleep mode
Optional maximum key-on time about 80sec
Auto calibration at power up (keypad must not be touched for 0.5 seconds after power up)
Auto calibration for changes in environment



PINOUT

1.....VCC (2.4 - 5.5V)
2.....GND
3.....SCL (serial clock in)
4.....SDO (serial data out)
5.....OUT 1 (key 1 state)
6.....OUT 2 (key 2 state)
7.....OUT 3 (key 3 state)
8.....OUT 4 (key 4 state)
9.....OUT 5 (key 5 state)
10...OUT 6 (key 6 state)
11...OUT 7 (key 7 state)
12...OUT 8 (key 8 state)
