Switch Hp Procurve 6600 24g 4xg - Funcionando (Usado)

Descrição

ECMICRO COMÉRCIO E INFORMÁTICA.
30 anos investindo e inovando em produtos e serviços.
________________________________________________________

- FOTO(S) MERAMENTE ILUSTRATIVA(S).

- PRODUTO(S) REVISADO(S) E TESTADO(S).

- DESPACHAMOS PARA TODO O BRASIL.

- 03 MESES DE GARANTIA.

- ESTAMOS LOCALIZADOS EM SÃO BERNARDO DO CAMPO – SP.

- ACESSÓRIOS INCLUSOS: CABO DE FORÇA.

________________________________________________________
*** LEIA O ANÚNCIO ATÉ O FINAL.***

É DE EXTREMA IMPORTÂNCIA QUE O COMPRADOR ESTEJA CIENTE DE TODAS AS INFORMAÇÕES DESCRITAS ABAIXO POIS, NO ATO DA COMPRA JÁ ESTARÁ AUTOMATICAMENTE CONCORDANDO!

OBS: NOSSOS PRODUTOS SÃO USADOS POR ESSE MOTIVO NÃO TERÃO A APARÊNCIA E PERFORMANCE DE UM NOVO.
PODENDO CONTER AVARIAS NA CARCAÇA E ALTERAÇÃO DE COR.
________________________________________________________

*ESPECIFICAÇÃO:

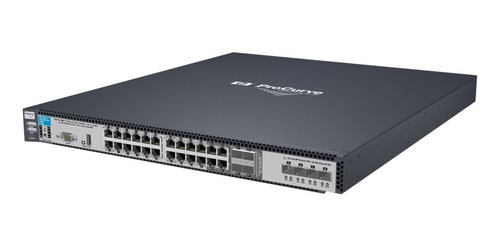

HP PROCURVE 6600 24G 4XG

*NÃO ACOMPANHA TRILHOS*

ESPECIFICAÇÕES SEGUNDO O FABRICANTE

DIMENSÕES (H x W x D):
4.32 x 44.25 x 54.61 cm (1.7 x 17.42 x 21.5 in) (1U height)

PESO:
7.8 kg (17.2 lb)


ALIMENTAÇÃO:
Idle power
167.6 W
Maximum power rating
204.3 W
Voltage
100 - 120 / 200 - 240 V ac
Frequency
50/60 Hz

MONTAGEM EM RACK:
Includes hardware for 2-post telco rack or equipment cabinet; horizontal surface mounting only. The 6600 Series Rack Kit (J9469A) is required for mounting in 4-post server/networking rack

FONTES DE ALIMENTAÇÃO:
2 power supply slots
Includes: 1 x J9269A (HPE 6600 Switch power supply)

VENTILADORES:
Includes: 1 x J9271A
1 fan tray slot
Fan tray supports N+N fans for added redundancy

ESPECIFIÇÕES AMBIENTAIS

Operating relative humidity:
15% to 80% at 40ºC (104ºF), non-condensing
Non-operating/ Storage temperature:
-40ºC to 70ºC (-40ºF to 158ºF)
Non-operating / Storage relative humidity:
15% to 90% at 65ºC (149ºF), non-condensing

Altitude
up to 3 km (10000 ft)

ACUSTICA DURANTE FUNCIONAMENTO:

Power
68 dB / 59.5 dB ISO 7779,ISO 9296

Maximum heat dissipation
735.33 kJ/hr (697 BTU/hr)

CAPACIDADES OPERACIONAIS:

1000 Mb Latency :
< 3.4 µs (FIFO 64-byte packets)

10 Gbps Latency:
< 2.4 µs (FIFO 64-byte packets)

Throughput:
up to 75.7 million pps (64-byte packets)

Routing/Switching capacity
101.8 Gb/s

witch fabric speed:
105.6 Gb/s

Routing table size:
10000 entries

MAC address table size:
64000 entries

Memory and processor:
Freescale PowerPC 8540 @ 666 MHz, 4MB flash, 256MB compact flash, 256MB DDR SDRAM; packet buffer size: 36MB QDR SDRAM total (18MB for 1 GbE/10 GbE ports)

Port:
20 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 dual-personality ports:
Each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10BASE-T; IEEE 802.3u Type 100BASE-TX; IEEE 802.3ab 1000BASE-T GbE) or an open Mini-GBIC slot
(For use with Mini-GBIC transceivers)
4 SFP+ 10 GbE ports; Duplex: full only
1 RS-232C DB-9 console port



PROTOCOLOS SUPORTADOS:
Security:
IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2865 RADIUS (Client only)
RFC 2866 RADIUS accounting
RFC 3579 RADIUS support for extensible
SSHv2 Secure Shell
Secure Sockets Layer (SSL)
Authentication Protocol (EAP)

QoS/Cos
RFC 2474 DiffServ precedence, including 8 queues/port
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)

OSPF
RFC 2328 OSPFv2
RFC 3101 OSPF NSSA
RFC 5340 OSPFv3 for IPv6

Network management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 2819 Four groups of RMON: 1 (Statistics), 2 (History), 3 (Alarm) and 9 (Events)
RFC 3176 sFlow
ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)
SNMPv1/v2c/v3
XRMON

MIBs
IEEE 802.1ap (MSTP and STP MIB's only)
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 1724 RIPv2 MIB
RFC 1850 OSPFv2 MIB
RFC 2021 RMONv2 MIB
RFC 2096 IP forwarding table MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS client MIB
RFC 2620 RADIUS accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2787 VRRP MIB
RFC 2863 The interfaces group MIB
RFC 2925 Ping MIB
RFC 2933 IGMP MIB

IPv6
RFC 1981 IPv6 Path MTU discovery
RFC 2375 IPv6 multicast address assignments
RFC 2460 IPv6 specification
RFC 2464 Transmission of IPv6 over Ethernetnetworks
RFC 2710 Multicast List-itemener Discovery (MLD) for IPv6
RFC 2925 Definitions of Managed Objects forRemote Ping, Traceroute, and Lookup Operations(Ping only)
RFC 3019 MLDv1 MIB
RFC 3315 DHCPv6 (Client only)
RFC 3484 default address selection for IPv6
RFC 3587 IPv6 global unicast address format
RFC 3596 DNS extension for IPv6
RFC 3810 MLDv2 (Host joins only)
RFC 4022 MIB for TCP
RFC 4087 IP Tunnel MIB
RFC 4113 MIB for UDP
RFC 4213 Basic transition mechanisms for IPv6hosts and routers
RFC 4251 SSHv6 architecture
RFC 4252 SSHv6 authentication
RFC 4253 SSHv6 transport layer
RFC 4254 SSHv6 connection
RFC 4291 IP Version 6 addressing architecture
RFC 4293 MIB for IP
RFC 4294 IPv6 node requirements
RFC 4419 key exchange for SSH
RFC 4443 ICMPv6
RFC 4541 IGMP & MLD snooping switch
RFC 4861 IPv6 neighbor discovery
RFC 4862 IPv6 stateless address auto-configuration
RFC 5095 deprecation of Type 0 routing headersin IPv6
RFC 5340 OSPFv3 for IPv6
RFC 5453 Reserved IPv6 interface identifiers
RFC 5519 Multicast Group Membership DiscoveryMIB (MLDv2 only)
RFC 5722 Handling of overlapping IPv6 fragments

IP multicast
RFC 3376 IGMPv3 (Host joins only)
RFC 3973 PIM dense mode
RFC 4601 PIM sparse mode

General protocols
IEEE 802.1ad Q-in-Q (Premium license)
IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees (MST)
IEEE 802.1v VLAN classification by protocol and port
IEEE 802.1w Rapid reconfiguration of spanning tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (Revision 2)
RFC 792 ICMP
RFC 793 TCP
UDLD (Uni-directional Link Detection)
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1350 TFTP Protocol (Revision 2)
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 2131 DHCP
RFC 2453 RIPv2
RFC 2548 (MS-RAS-Vendor only)
RFC 3046 DHCP Relay Agent Information Option
RFC 3576 Ext to RADIUS (CoA only)
RFC 3768 VRRP
RFC 4675 RADIUS VLAN & Priority

Device management
RFC 1591 DNS (sssclient)
HTML and telnet management
Border Gateway Protocol (BGP)
RFC 1997 BGP communities attribute
RFC 2918 route refresh capability
RFC 4271 A BGP-4
RFC 4456 BGP route reflection: An Alternative tofull mesh internal BGP (IBGP)
RFC 5492 capabilities advertisement with BGP-4
***SEM CABO CONSOLE***
________________________________________________________
ATENÇÃO!!!

EMITIMOS NFE PARA PESSOA FÍSICA E JURÍDICA, CONFORME O SEU CADASTRO NO MERCADO LIVRE.

GARANTIA BALCÃO (03 MESES):
O tempo da garantia conta a partir da data de emissão da Nota Fiscal, não podendo ser prorrogada por mais tempo.
________________________________________________________

Atendimento de Segunda á Sexta das 08:30 ás 17:30.

Garantia do vendedor: 3 meses
