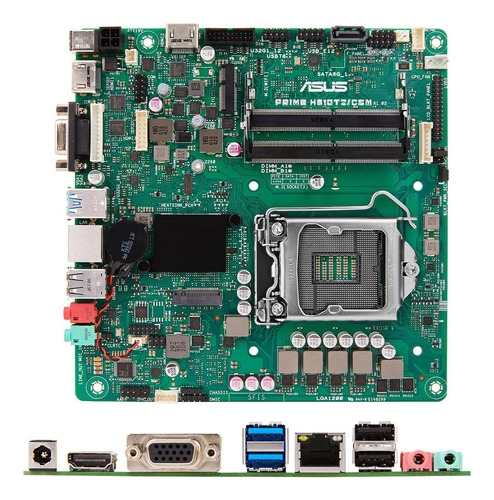

Placa Mãe Asus Prime Mini Itx H510t Ddr4 Lga 1200 Oem

Descrição

CPU
Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel 14 nm CPU*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
*CPU only support up to 65W
**Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset: Intel H510 Chipset

Memory
2 x SO-DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
* For 10th Gen Intel processors, only Core i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.

Graphics:
2 x D-Sub(1 x port ; 1 x header)*
3 x HDMITM 2.0 (2 x ports ; 1 x header)**
1 x LVDS header
*Only VGA2 (header)can be used when you connect VGA1 and VGA2 to devices simultaneously.
**Only HDMI2(port) can be used when you connect HDMI2 and HDMI3 to devices simultaneously.
**HDMI3 only supports HDMI 1.4
**Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz.
****Graphics specifications may vary between CPU types.

Storage Total supports
1 x M.2 slot and 1 x SATA 6Gb/s port

Intel H510 Chipset
- 1 x SATA 6.0 Gb/s port
- 1 x M.2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Ethernet
1 x Realtek RTL8111H 1Gb Ethernet

USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports

Audio
"Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-Recording, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x HDMI port
1 x Realtek RTL8111H 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
Power related
1 x 4-pin +19V Power connector
1 x SATA power connector
Storage related
1 x M.2 slot (Key M)
1 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header supports additional 4 USB 2.0 ports
AIO System related
1 x 2-pin internal DC power connector
1 x Stereo speaker connector
1 x DMIC header
Flat panel display related
1 x Backlight inverter voltage selection header
1 x FPD brightness header
1 x Panel voltage selection header
1 x Panel off header
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port header
1 x COM debug header
1 x Front Panel Audio header (AAFP)
1 x HDMI header
1 x LVDS header
1 x HDMI Port
1 x M.2 slot (Key E)
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x VGA header
1 x 10-1 pin System Panel header

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability:WOL by PME

Operating System:Windows 10 (64-bit)

Form Factor
Thin Mini-ITX Form Factor
6.7x 6.7 (17.0cm x 17.0cm) | Peso(G): 0,295.
