Placa Mae Mb Biostar A320mh 2.0 Am4 Ddr4

Descrição

DESCRIÇÃO

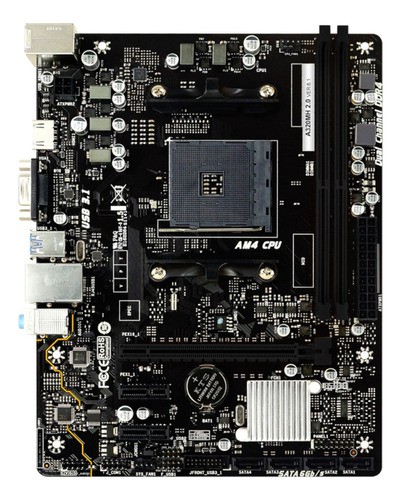

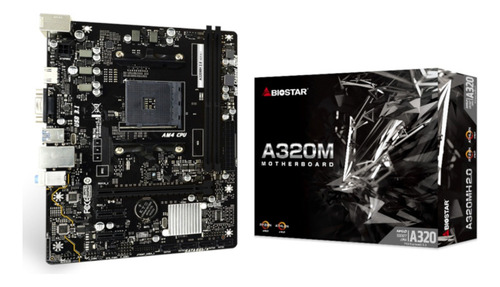

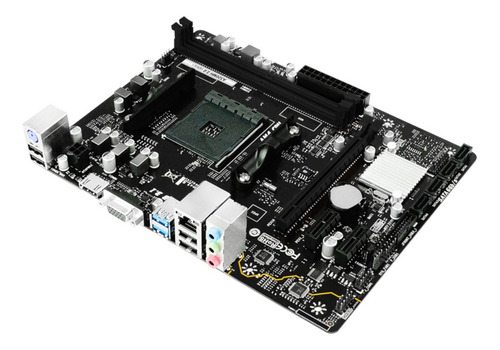

PLACA MAE BIOSTAR A320MH 2.0 AM4 DDR4

* * * NÃO SUPORTA ATLHON A6 , A8 , A10 * * *

ESPECIFICAÇÕES

Chipset AMD A320

CPU SUPPORT
Socket AM4 supports AMD A-series APU, Ryzen APU / Ryzen CPU

MEMORY Supports Dual Channel DDR4 1866/2133/2400/2667/2933
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 8/16 GB DDR4 module
DDR4 - 2933 memory type only support for Ryzen 2 CPU.

INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connectors (6Gb/s)
Supports AHCI & RAID 0, 1, 10

LAN Realtek RTL 8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC ALC897
7.1 Channels, High Definition Audio

USB 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

EXPANSION SLOT 2 x PCIe 2.0 x1 Slot
1 x PCIe 3.0 x16 Slot (The bandwidth is depended on CPU)

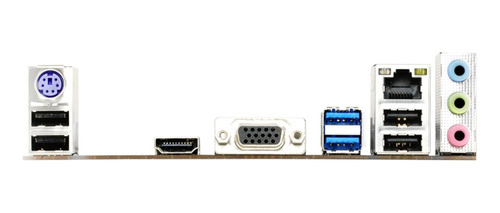

REAR I/O 1 x PS/2 Keyboard/ Mouse
1 x VGA Port
1 x HDMI Port
1 x LAN port
2 x USB 3.2 (Gen1) Ports
4 x USB 2.0 Ports
3 x Audio Jack

INTERNAL I/O 4 x SATA III 6.0Gb/s Connectors
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 4-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x COM Serial Header

H/W MONITORING CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control

System Voltage Monitoring

DIMENSION Micro ATX Form Factor Dimension: 17.4cm x 22.6cm ( W x L )

OS SUPPORT Supports Windows 7(64bit) / 10(64bit) / 11(64bit)

BUNDLE SOFTWARE BullGuard

ACCESSORIES 2 x SATA Cable

1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES Supports 100% Solid capacitor
BIO-FLASHER
Supports BIOS Online Update

Garantia do vendedor: 3 meses
