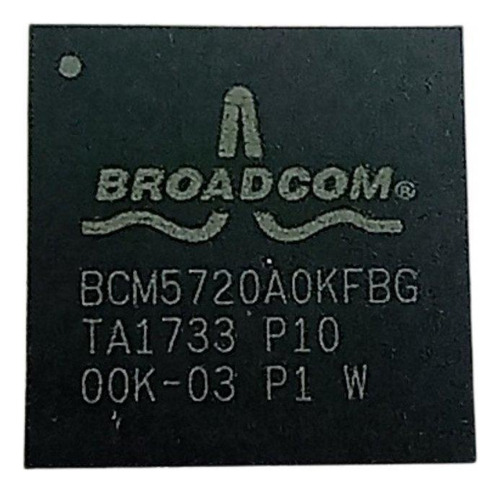

Ci Controlador De Rede Dual Gigabit Broadcom Bcm5720a0kfbg

Descrição

The Broadcom BCM5720 is a thirteenth-generation 10/100/1000BASE-T Ethernet LAN controller solution suitable for high-performance server applications.

Built on proven architecture, the BCM5720 provides a PCI Express v2.0-compliant host interface, which can operate at 5GT/s or at 2.5GT/s at x2 link width.

The PCI Express supports MSI and MSI-X capabilities and Function Level Reset (FLR).

The BCM5720 combines dual triple-speed IEEE 802.3 compliant Media Access Controllers (MACs) with dual 1000BASE-X/SGMII SerDes transceivers or dual 10/100/1000 Ethernet transceivers (PHYs), selectable individually per port, a Network Controller Sideband Interface (NC-SI), and on-chip memory buffer in a single device.


Manufacturer: Broadcom Limited Product Category: Ethernet ICs Mounting Style: SMD/SMT Product: Ethernet Controllers Standard: 10/100/1GBASE-T, 1GBASE-X Number of Transceivers: 2 Transceiver Data Rate: 10 Mb/s, 100 Mb/s, 1 Gb/s Interface Type: JTAG, PCIe, SerDes, SGMII Operating Supply Voltage: 1.2V to 3.3V Minimum Operating Temperature: 0C Maximum Operating Temperature: 55C Brand: Broadcom / Avago Moisture Sensitive: Yes Product Type: Ethernet ICs

Garantia do vendedor: 3 meses
