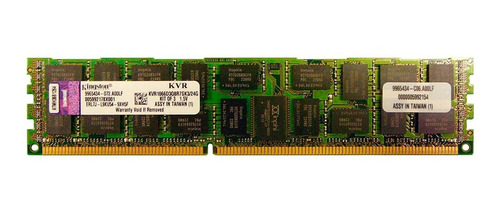

Memória Kingston Ecc Pc3-8500 24gb Ddr3-1066 Servidor Mac Pr

Descrição

Memória Destinada a Servidores e Mac Pro 5.1 - Registrada ECC

Modelo: KVR1066D3Q8R7SK3/24G

24GB (8GB 1024M x 72-Bit x 3 pcs.)

PC3-8500

CL7 Registered w/Parity 240-Pin DIMM

Kingston.com Document No. VALUERAM0857-001.A00 09/18/09 Page 1
DESCRIPTION
ValueRAM’s KVR1066D3Q8R7SK3/24G is a kit of three 1024M
x 72-bit 8GB (8192MB) DDR3-1066 CL7 SDRAM (Synchronous
DRAM) registered w/parity, quad-rank memory modules, based
on thirty-six 256M x 8-bit DDR3-1066 FBGA components per
module. Total kit capacity is 24GB. The SPDs are programmed to
JEDEC standard latency 1066Mhz timing of 7-7-7 at 1.5V. Each
240-pin DIMM uses gold contact fingers and requires +1.5V. The
electrical and mechanical specifications are as follows:
FEATURES
• JEDEC standard 1.5V ± 0.075V Power Supply
• VDDQ = 1.5V ± 0.075V
• 533MHz fCK for 1066Mb/sec/pin
• 8 independent internal bank
• Programmable CAS Latency: 6,7,8,9
• Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
• Programmable CAS Write Latency(CWL) = 6(DDR3-1066)
• 8-bit pre-fetch
• Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does
not allow seamless read or write [either on the fly using A12
or MRS]
• Bi-directional Differential Data Strobe
• Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
• On Die Termination using ODT pin
• On-DIMM thermal sensor (Grade B)
• Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE = 95°C
• Asynchronous Reset
• PCB : Height 1.180” (30.00mm), double sided component

Embalagem Aberta para Conferencia de Funcionamento.
