Condição de XM25QH128AHIG-KIT5: novo em embalagem comercial

128Mb (256 Bytes x 65535 pages) SPI Dual/Quad I/O FLASH NonVolatile SOP8L NOR FLASH ROHS

GENERAL DESCRIPTION

The XM25QH128A is a 128 Megabit (16,384Kbyte) Serial Flash memory, with advanced write protection mechanisms. The XM25QH128A supports the single bit and four bits serial input and output commands via standard Serial Peripheral Interface (SPI) pins: Serial Clock, Chip Select, Serial DQ0 (DI) and DQ1(DO), DQ2(WP#) and DQ3(HOLD#/RESET#). SPI clock frequencies of up to 104Mhz are supported allowing equivalent clock rates of 416Mhz(104Mhz x 4) for Quad Output using the Quad Output read instructions. The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The XM25QH128A also offers a sophisticated method for protecting individual blocks against erroneous or malicious program and erase operations. By providing the ability to individually protect and unprotect blocks, a system can unprotect a specific block to modify its contents keeping the remaining blocks of the memory array securely protected. This is useful in applications where program code is patched or updated on a subroutine or module basis or in applications where data storage segments need to be modified without running the risk of errant modifications to the program code segments.

The XM25QH128A is designed to allow either single Sector/Block at a time or full chip erase operation. The XM25QH128A can be configured to protect part of the memory as the software protected mode. The device can sustain a typical of 100K program/erase cycles on each sector or block.

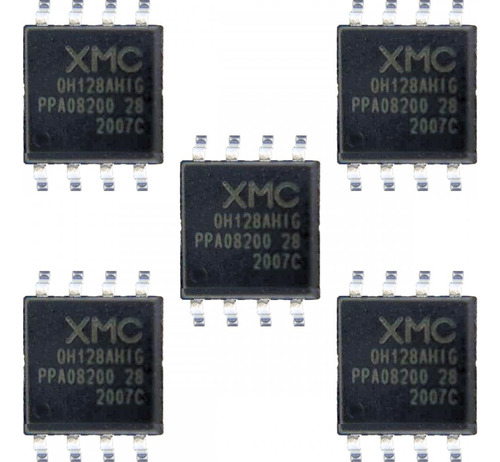

XM25QH128AHIG CI Bios 128MB XMC SPI Flash 3.6V SOP8

KIT com 5 unidades XM25QH128AHIG

XM25QH128AHIG-KIT5 kit 5x CI BIOS 128MB XMC SPI FLASH 3.6V SOP8
Condição de XM25QH128AHIG-KIT5: novo em embalagem comercial

Tags de XM25QH128AHIG-KIT5: QH128AHIG, ci de bios de 128mb, bios de 128Mb, XM25QH128AHIG, 25QH128AHI, 25QH128A, XM25QH128A, chip de bios 32MB, bios 32MB, bios de notebook 32mb, EN25Q32B-104HIP, EN25Q32B, Q32B-104HIP, Q64-104HIP, -104HIP, Q64104HIP, 25Q64FVSIG, Cfeon Q64-104HIP, EN25Q64, 25Q64FVSIG, Bios de Notebok, CI de Bios, IC Bios, EN25Q32B-104HIP, EN25Q32B, Q32B-104HIP, Bios para Notebook, Bios de Notebook, Ci de Bios, IC Bios, Q32B104HIP, Q32B-104H1p, En25q64, W25Q32, CFEON q32b-104hip, Eon cFeon, Bios para Notebook, Bios de Notebook, Ci de Bios, IC Bios, Q32B104HIP, Q32B-104H1p, En25q64, W25Q32, CFEON q32b-104hip, Eon cFeon, 128 Megabit 3V Serial Flash Memory with 4Kbyte Uniform Sector, 128mb Serial Flash Memory, =XM25QH128AHIG

==========================================

* EMITIMOS NOTA FISCAL *

ATENÇÃO!!!
Nota Fiscal para USO E CONSUMO ou REVENDA, de acordo com as novas leis de impostos de Substituição Tributária entre estados, para Pessoa Jurídica com Inscrição Estadual FORA do Estado de São Paulo, poderá ocorrer ST no valor do produto e frete. Portanto, será necessário o pagamento dessa diferença antes de enviar o produto.

*Caso não queira pagar esse imposto, a compra deverá ser feita por um cadastro de Pessoa Física.

Garantia do vendedor: 3 meses
