Switch Brocade Emc Dcx 8510-4 San Switch 96x 16gb Fc Nfe 1an

Descrição

Equipamento 100% revisado e pronto para o uso, fornecemos além do produto, suporte técnico especializado para acompanha-lo na configuração e demais suportes. O conjunto foi revisado, está com reset de fabrica, com ip default, e possui todas as licenças full;

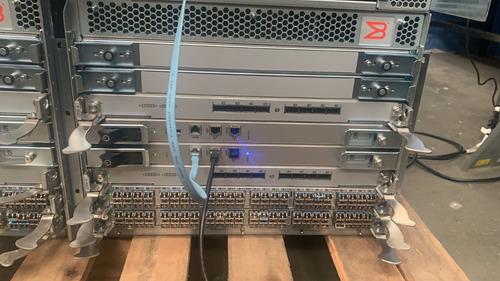

Brocade EMC DCX 8510-4

1 x Brocade EMC DCX 8510-4 Backbone SAN Switch 100-652-849 With Modules:
2 x CP8 Control Processor Blades 105-000-138
2 x CR16-4 Core Switching Blade Module 105-000-213
2 x FC16-48 48-Port 16Gb Fibre Channel Switch Blade 105-000-216
1 x Module Blank
2 x 2000W Power Supplies 105-000-140
2 x Fan Module 105-000-142

LICENÇAS:
- FICON_CUP
- Adaptive networking
- Server Application Optimization
- Fabric Watch
- Performance Monitor
- Trunking
- Extended Fabric

Description:

Maximum Flexibility and Reliability
Brocade DCX 8510 Backbones are available in two modular form factors. Built for large enterprise networks, the 14U Brocade DCX 8510-8 has eight vertical blade slots to provide up to 384 16 Gbps Fibre Channel ports. Built for midsize networks, the 8U Brocade DCX 8510-4 has four horizontal blade slots to provide up to 192 16 Gbps Fibre Channel ports. The Brocade DCX 8510 family supports 2, 4, 8, 10, and 16 Gbps Fibre Channel, FICON, and 1/10 Gbps Fibre Channel over IP (FCIP).

To help minimize downtime costs, Brocade DCX 8510 Backbones build upon years of innovation and leverage the core technology of Brocade systems performing at greater than 99.999 percent uptime in the world's most demanding data centers.

Simplified Scale-Out Network Design
Networks are evolving in order to adapt to rapid growth and change in the server and storage infrastructure. New optical Inter-Chassis Links (ICLs) can connect up to 10 Brocade DCX 8510 Backbones, enabling flatter, faster, and simpler fabrics that increase consolidation while reducing network complexity and costs.

ICLs enable scalable core-edge and active-active mesh chassis topologies. These high-density chassis topologies reduce inter-switch cabling by 75 percent and free up to 33 percent of ports for server and storage. This maximizes overall port density in the lowest amount of rack space.

Optimized Data Center Connectivity Over Distance
Connecting distributed data centers enables data mobility for advanced data protection solutions. Brocade DCX 8510 Backbones include integrated metro and global SAN extension that provides application agility and flexible business continuity and disaster recovery solutions.

The Brocade DCX 8510 family enables high-speed replication and backup solutions over metro or WAN links with native Fibre Channel (10/16 Gbps) and optional FCIP (1/10 GbE) extension support. The integrated metro connectivity includes in-flight compression and encryption to optimize bandwidth and minimize the risk of unauthorized access.

Simplified Deployment and Centralized Management
Automating and simplifying SAN management enables data centers to quickly adapt to change and overcome disruptions in a private cloud infrastructure. Brocade DCX 8510 advanced diagnostics, monitoring, and management reduce end-to-end SAN management complexities and costs.

The Brocade DCX 8510 helps reduce operating costs through simpler server provisioning and change management, advanced cable and optics diagnostics, and comprehensive management. Several technologies support these capabilities, including:

Dynamic Fabric Provisioning: Combines Brocade backbone and adapter technology to reduce or eliminate the need to reconfigure zoning and Logical Unit Number (LUN) masking when adding or replacing servers
Diagnostic Ports (D_Ports): Help identify and isolate optics and cable problems, reducing fabric deployment and diagnostic times
Brocade Network Advisor: Provides comprehensive management of data center fabrics, including configuration, monitoring, and management of Brocade backbones, switches, and adapters
Industry-Leading Performance
Emerging and evolving critical workloads and higher density virtualization are continuing to push the limits of SAN infrastructure. The Brocade DCX 8510 features industry-leading 16 Gbps performance and 8.2 Tbps chassis bandwidth to address next-generation I/O- and bandwidth-intensive applications.

Brocade DCX 8510 Backbones provide unmatched chassis, slot-to-slot, and port performance and bandwidth. In addition, local switching capabilities ensure that data traffic within the same port group does not consume slot bandwidth, maximizing the number of line-rate ports. Performance capabilities include:


Brocade DCX 8510-4:
Up to 192 ports (equivalent to 256 with ICLs) at 16 Gbps
4.1 Tbps chassis bandwidth
3.1 Tbps universal ports
1 Tbps ICL bandwidth
512 Gbps bandwidth per slot

Enterprise-Class Reliability, Availability, and Serviceability
The Brocade DCX 8510 features advanced monitoring, diagnostics, and RAS capabilities to maximize availability, optimize performance, and simplify administration. These enterprise-class features include:
Critical diagnostic and monitoring capabilities to help ensure early problem detection and recovery
Non-intrusive and non-disruptive monitoring on every port to provide a comprehensive end-to-end view of the entire fabric
Forward Error Correction (FEC) to recover from bit errors in ISLs, enhancing transmission reliability and performance
Additional buffers to overcome performance degradation and congestion due to buffer credit loss
Real-time bandwidth consumption by hosts/applications on ISLs to easily identify hot spots and potential network congestion


boot log status;

Boot Log:

S4M0005:FID128:admin> version
Kernel: 2.6.14.2
Fabric OS: v8.1.2d
Made on: Thu May 24 01:50:40 2018
Flash: Mon Jul 9 07:15:48 2018
BootProm: 1.0.16
S4M0005:FID128:admin> chassisshow

Chassis Family: DCX8510-4
Chassis Backplane Revision: 2

CP BLADE Slot: 4
Header Version: 2
Power Consume Factor: -40W
Factory Part Num: 60-1000376-10
Factory Serial Num: AHJ0450H02W
Manufacture: Day: 13 Month: 12 Year: 2012
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

CP BLADE Slot: 5
Header Version: 2
Power Consume Factor: -40W
Factory Part Num: 60-1000376-10
Factory Serial Num: AHJ0450H052
Manufacture: Day: 12 Month: 12 Year: 2012
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

CORE BLADE Slot: 3
Header Version: 2
Power Consume Factor: -135W
Power Usage: -59W
Factory Part Num: 60-1002055-13
Factory Serial Num: BQD0443H02C
Manufacture: Day: 27 Month: 10 Year: 2012
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

CORE BLADE Slot: 6
Header Version: 2
Power Consume Factor: -135W
Power Usage: -64W
Factory Part Num: 60-1002055-13
Factory Serial Num: BQD0443H01A
Manufacture: Day: 27 Month: 10 Year: 2012
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

SW BLADE Slot: 7
Header Version: 2
Power Consume Factor: -160W
Power Usage: -74W
Factory Part Num: 60-1001945-15
Factory Serial Num: BQB0401J06M
Manufacture: Day: 23 Month: 1 Year: 2013
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

POWER SUPPLY Unit: 1
Header Version: 2
Power Consume Factor: 2000W
Factory Part Num: 23-0000067-01
Factory Serial Num: AGC2M38HGBS
Manufacture: Day: 16 Month: 1 Year: 2013
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

POWER SUPPLY Unit: 2
Header Version: 2
Power Consume Factor: 2000W
Factory Part Num: 23-0000067-01
Factory Serial Num: AGC2M38HGBR
Manufacture: Day: 16 Month: 1 Year: 2013
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

FAN Unit: 1
Header Version: 2
Power Consume Factor: -126W
Factory Part Num: 60-1000384-12
Factory Serial Num: AGB1902J015
Manufacture: Day: 18 Month: 1 Year: 2013
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

FAN Unit: 2
Header Version: 2
Power Consume Factor: -126W
Factory Part Num: 60-1000384-12
Factory Serial Num: AGB1902J014
Manufacture: Day: 18 Month: 1 Year: 2013
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

WWN Unit: 1
Header Version: 2
Power Consume Factor: -1W
Factory Part Num: 60-1000888-05
Factory Serial Num: ANN1905J003
Manufacture: Day: 18 Month: 1 Year: 2013
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days
ID: EMC0000CA
Part Num: CONTRX0000X4S
Serial Num: BRCANN1905J003

WWN Unit: 2
Header Version: 2
Power Consume Factor: -1W
Factory Part Num: 60-1000888-05
Factory Serial Num: ANQ0442H057
Manufacture: Day: 18 Month: 1 Year: 2013
Update: Day: 4 Month: 3 Year: 2019
Time Alive: 2114 days
Time Awake: 0 days

Chassis Factory Serial Num: ANP1903J009

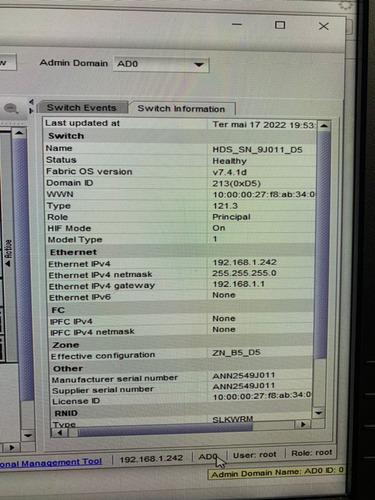

S4M0005:FID128:admin> switchshow
switchName: S4M0005
switchType: 121.3
switchState: Online
switchMode: Native
switchRole: Principal
switchDomain: 1
switchId: fffc01
switchWwn: 10:00:00:27:f8:33:d7:00
zoning: OFF
switchBeacon: OFF
FC Router: OFF
HIF Mode: OFF
Allow XISL Use: OFF
LS Attributes: [FID: 128, Base Switch: No, Default Switch: Yes, Ficon Switch: No, Address Mode 0]

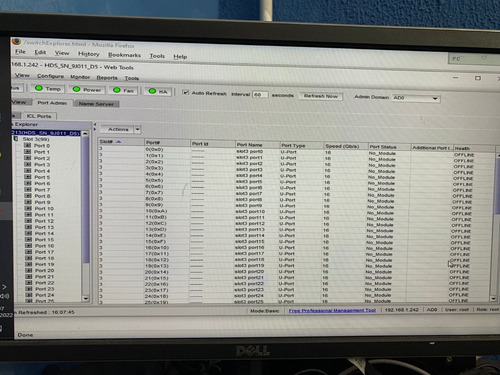

Index Slot Port Address Media Speed State Proto
============================================================
256 3 0 ------ -- 16G No_Module FC
257 3 1 ------ -- 16G No_Module FC
258 3 2 ------ -- 16G No_Module FC
259 3 3 ------ -- 16G No_Module FC
260 3 4 ------ -- 16G No_Module FC
261 3 5 ------ -- 16G No_Module FC
262 3 6 ------ -- 16G No_Module FC
263 3 7 ------ -- 16G No_Module FC
264 3 8 ------ -- 16G No_Module FC
265 3 9 ------ -- 16G No_Module FC
266 3 10 ------ -- 16G No_Module FC
267 3 11 ------ -- 16G No_Module FC
268 3 12 ------ -- 16G No_Module FC
269 3 13 ------ -- 16G No_Module FC
270 3 14 ------ -- 16G No_Module FC
271 3 15 ------ -- 16G No_Module FC
736 3 16 ------ -- 16G No_Module FC
737 3 17 ------ -- 16G No_Module FC
738 3 18 ------ -- 16G No_Module FC
739 3 19 ------ -- 16G No_Module FC
740 3 20 ------ -- 16G No_Module FC
741 3 21 ------ -- 16G No_Module FC
742 3 22 ------ -- 16G No_Module FC
743 3 23 ------ -- 16G No_Module FC
744 3 24 ------ -- 16G No_Module FC
745 3 25 ------ -- 16G No_Module FC
746 3 26 ------ -- 16G No_Module FC
747 3 27 ------ -- 16G No_Module FC
748 3 28 ------ -- 16G No_Module FC
749 3 29 ------ -- 16G No_Module FC
750 3 30 ------ -- 16G No_Module FC
751 3 31 ------ -- 16G No_Module FC
272 6 0 ------ -- 16G No_Module FC
273 6 1 ------ -- 16G No_Module FC
274 6 2 ------ -- 16G No_Module FC
275 6 3 ------ -- 16G No_Module FC
276 6 4 ------ -- 16G No_Module FC
277 6 5 ------ -- 16G No_Module FC
278 6 6 ------ -- 16G No_Module FC
279 6 7 ------ -- 16G No_Module FC
280 6 8 ------ -- 16G No_Module FC
281 6 9 ------ -- 16G No_Module FC
282 6 10 ------ -- 16G No_Module FC
283 6 11 ------ -- 16G No_Module FC
284 6 12 ------ -- 16G No_Module FC
285 6 13 ------ -- 16G No_Module FC
286 6 14 ------ -- 16G No_Module FC
287 6 15 ------ -- 16G No_Module FC
784 6 16 ------ -- 16G No_Module FC
785 6 17 ------ -- 16G No_Module FC
786 6 18 ------ -- 16G No_Module FC
787 6 19 ------ -- 16G No_Module FC
788 6 20 ------ -- 16G No_Module FC
789 6 21 ------ -- 16G No_Module FC
790 6 22 ------ -- 16G No_Module FC
791 6 23 ------ -- 16G No_Module FC
792 6 24 ------ -- 16G No_Module FC
793 6 25 ------ -- 16G No_Module FC
794 6 26 ------ -- 16G No_Module FC
795 6 27 ------ -- 16G No_Module FC
796 6 28 ------ -- 16G No_Module FC
797 6 29 ------ -- 16G No_Module FC
798 6 30 ------ -- 16G No_Module FC
799 6 31 ------ -- 16G No_Module FC
128 7 0 018000 -- N16 No_Module FC
129 7 1 018100 -- N16 No_Module FC
130 7 2 018200 -- N16 No_Module FC
131 7 3 018300 -- N16 No_Module FC
132 7 4 018400 -- N16 No_Module FC
133 7 5 018500 -- N16 No_Module FC
134 7 6 018600 -- N16 No_Module FC
135 7 7 018700 -- N16 No_Module FC
136 7 8 018800 -- N16 No_Module FC
137 7 9 018900 -- N16 No_Module FC
138 7 10 018a00 -- N16 No_Module FC
139 7 11 018b00 -- N16 No_Module FC
140 7 12 018c00 -- N16 No_Module FC
141 7 13 018d00 -- N16 No_Module FC
142 7 14 018e00 -- N16 No_Module FC
143 7 15 018f00 -- N16 No_Module FC
144 7 16 019000 -- N16 No_Module FC
145 7 17 019100 -- N16 No_Module FC
146 7 18 019200 -- N16 No_Module FC
147 7 19 019300 -- N16 No_Module FC
148 7 20 019400 -- N16 No_Module FC
149 7 21 019500 -- N16 No_Module FC
150 7 22 019600 -- N16 No_Module FC
151 7 23 019700 -- N16 No_Module FC
152 7 24 019800 -- N16 No_Module FC
153 7 25 019900 -- N16 No_Module FC
154 7 26 019a00 -- N16 No_Module FC
155 7 27 019b00 -- N16 No_Module FC
156 7 28 019c00 -- N16 No_Module FC
157 7 29 019d00 -- N16 No_Module FC
158 7 30 019e00 -- N16 No_Module FC
159 7 31 019f00 -- N16 No_Module FC
160 7 32 01a000 -- N16 No_Module FC
161 7 33 01a100 -- N16 No_Module FC
162 7 34 01a200 -- N16 No_Module FC
163 7 35 01a300 -- N16 No_Module FC
164 7 36 01a400 -- N16 No_Module FC
165 7 37 01a500 -- N16 No_Module FC
166 7 38 01a600 -- N16 No_Module FC
167 7 39 01a700 -- N16 No_Module FC
168 7 40 01a800 -- N16 No_Module FC
169 7 41 01a900 -- N16 No_Module FC
170 7 42 01aa00 -- N16 No_Module FC
171 7 43 01ab00 -- N16 No_Module FC
172 7 44 01ac00 -- N16 No_Module FC
173 7 45 01ad00 -- N16 No_Module FC
174 7 46 01ae00 -- N16 No_Module FC
175 7 47 01af00 -- N16 No_Module FC

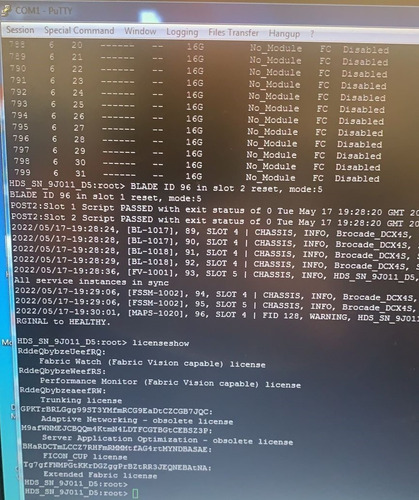

S4M0005:FID128:admin> licenseshow
****************************************:
Extended Fabric license
Fabric Watch (Fabric Vision capable) license
Performance Monitor (Fabric Vision capable) license
Trunking license
Adaptive Networking - obsolete license
Server Application Optimization - obsolete license
S4M0005:FID128:admin>

Garantia do vendedor: 12 meses
