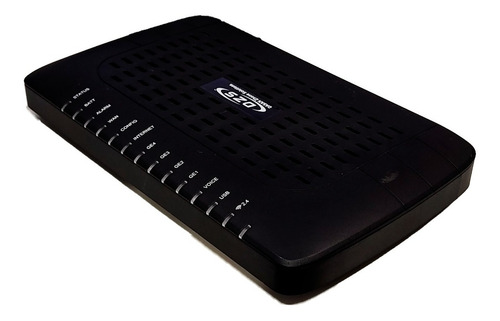

Modem Roteador Wifi Fibra Optica Gpon Dasan Zhone 2426a1 Ont

Descrição

Modem Roteador Wifi Gateway DZS , 4 portas Giga , 2 Portas POTs

Key Features
Standard ITU G.984 GPON
Triple-Play QoS
VoIP with CLASS 5 Features
802.11b/g/n/ac WiFi
Lightning-fast WiFi speeds


Dimensions and Weight
Dimensions (H x W x D)
1.5 in. H x 10 in. W x 6 in. D
3.8 cm H x 25.4 cm W x 15.2 cm D


Weight
1.0 – 1.2LB (0.45 – 0.54 kg)
Power
12VDC, 2.0A max
Power Supply: 100-240VAC, 50/60 Hz, 24W out
Round barrel-type connector for power input
2×4 Molex-type connector for optional BBU power input with alarm reporting

Interfaces
Network Interface (GPON Uplink)
– SC/APC connector
– Full ITU-T G.984 compliance
– Class B+ optics
– G.985 wavelength blocking filter
– GPON Type B redundancy support
GPON Tx:
– Upstream data rate 1.25 Gbps
– 1310 nm optics
– DFB transmitter
– Launch Power: +0.5 to +5 dBm
GPON Rx:
– Downstream data rate: 2.5 Gbps
– 1490 nm optics
– APD/TIA receiver
– Receiver Sensitivity: -28 dBm
– Input power overload: -8 dBm
– Input power damage: +5 dBm

LAN Ports
– Four 10/100/1000Base-T LAN ports
– RJ-45 connectors
– Auto-MDI-X crossover control
– Auto-Speed or manual selection

POTS Ports
– Two FXS ports
– RJ-11 connectors
– 5 REN per line
– Battery voltage: -48VDC
– Max loop current: 40mA
– Ringing voltage: 48Vrms @ 20/25 Hz

WiFi – 802.11b/g/n:
– 2.4 GHz band
– 2×2 MIMO 3dBi internal antennas
– Channel width: 20 MHz, 40 MHz

USB Ports
– One USB 2.0 port
– 3G dongle support for uplink fallback

Wireless Support
SSIDs: 4 @ 2.4GHz + 4 @ 5.8GHz
Max number of subscribers: 64 per Radio
Max 2.4GHz Tx power: 100 mW (2426A1, 2428A1)
Authentication Security: WEP, WPA-PSK, WPA2, WPA2-PSK, 802.1x
Encryption: WEP (64-bit, 128-bit), AES, TKIP+AES
WPS modes: push-button, API PIN, STA PIN
RADIUS Server support
MAC address filtering
Access Point and Wireless Bridge modes

Standards Support
ITU-T G.984 compliant
IEEE 802.3 Ethernet
IEEE 802.1p/q VLANs
IEEE 802.3u Fast Ethernet
IEEE 802.3ab 1000Base-T

Voice Support
SIP (RFC 3261)
MGCP
Codec: G.711 (u-law and A-law), G.729B, G726
DTMF dialing
Echo cancellation

Protocol Support
GPON:
– Fully ITU-T G.984 compliant framing
– Dying Gasp support
– 32 T-CONTs per device
– 32 GEM Ports per device
– Activation with automatic discovered S/N and password in conformance with ITU-T G.984.3
– AES-128 Decryption with key generation and switching
– FEC (Forward Error Correction)
– 802.1p mapper service profile on U/S
– Support for Multicast GEM Port
QOS:
– Ethernet bridging/switching per IEEE 802.1d/802.1q
– Traffic management (priority queuing)
– QoS with support for IEEE 802.1p + DSCP
VLANs:
– Per port IEEE 802.1Q VLAN ID processing
– All VLAN IDs supported
– VLAN tagging/untagging
– VLAN Stacking (QinQ)
– VLAN Switching
IPTV:
– IGMP v3 Snooping
– VLAN support
Layer 2:
– 802.3n flow control
– Automatic MAC learning and aging
– Unlimited # of MAC addresses for OMCI-configured flows
– Support for up to 4,096 MAC addresses for RG traffic flows
– Broadcast storm control
– LLDP-MED
IP Routing and Firewall:
– PPPoE
– NAT/NAPT
– Port forwarding
– DHCP Server
– DNS Server
– UPnP
IPv6:
– IPv4 and IPv6 Dual-Stack-lite
– Bridged Mode (transparent pass-thru of IPv6 frames)
– IPv6 Support for BRouted, and PPPoE-Bridged VLANs
– DHCPv6 client and server
– Router Advertisement on LAN- side interfaces of BRouted and PPPoE-Bridged VLANs
– SLAAC for automatic acquisition of WAN-side IPv6 address and Gateway
– CLI and http management via IPv6 address
– TR-069 management via IPv6 address

Management
OMCI
Web UI
CLI
SNMP
TR-069, TR-104 and TR-98
USP (Unified Service Provisioning)

Regulatory Compliance
CE
UL/CSA
FCC Part B
21 CFR 1040.10, 1040.11
RoHS 2011/65/EU

Operating Requirements
Operating Temperature: 0°C to +40°C
Storage Temperature: -20°C to +85°C
Relative Humidity: 0 to 95%, non-condensing
