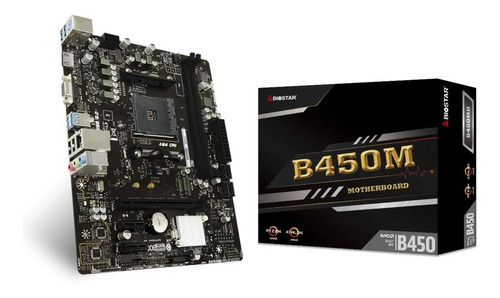

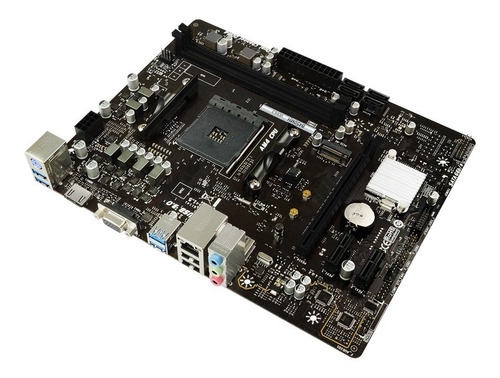

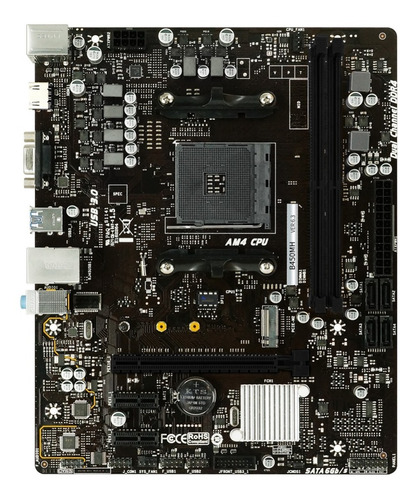

Placa Mãe B450mh Amd Am4 Ddr4 Micro-atx Biostar

Descrição

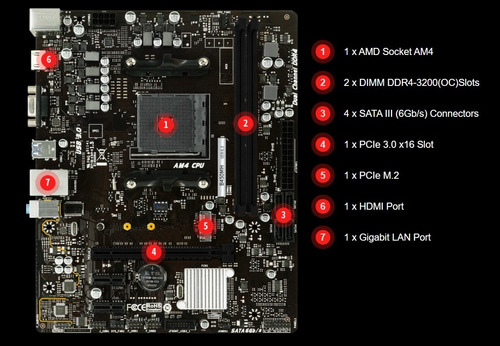

PLACA MAE BIOSTAR B450MH Ver:6.3

Chipset:
- AMD B450

CPU SUPPORT:
- Supports AMD AM4 Socket for 3rd, 2nd and 1st Gen Ryzen/2nd and 1st Gen Ryzen with Radeon Vega
- Graphics/Athlon with Radeon Vega Graphics Processors

MEMORY:
- Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz
- 2 x DDR4 DIMM Memory Slot
- Max. Supports up to 32GB Memory
- Each DIMM supports non-ECC 8/16 GB DDR4 module Memory support list.

INTEGRATED VIDEO:
- By CPU model
- Supports DX12
- Supports HDCP

STORAGE:
- 4 x SATA III Connectors (6Gb/s) :
- Supports AHCI & RAID 0, 1, 10
- 1 x M.2 (M Key) Socket:
- Supports PCIe (32Gb/s) & SATA III (6Gb/s) SSD (Ryzen series - Summit Ridge / Pinnacle Ridge / Raven Ridge)
- Supports SATA III (6Gb/s) SSD (A-series APU - Bristol Ridge)

LAN:
- Realtek RTL8111H - 10/100/1000Mb/s Controller
- Support Super LAN Surge Protection

AUDIO CODEC:
- ALC887
- 7.1 Channels, High Definition Audio

USB:
- 6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)
- 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

EXPANSION SLOT
- 2 x PCIe 2.0 x1 Slots
- 1 x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed)

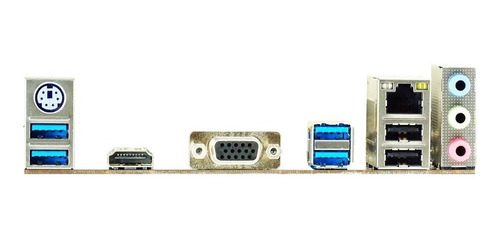

REAR I/O:
- 1 x PS/2 Keyboard/Mouse
- 4 x USB 3.2 Gen1 (5Gb/s) Ports
- 2 x USB 2.0 Ports
- 1 x HDMI Port
- 1 x VGA Port
- 1 x LAN Port
- 3 x Audio Jacks

INTERNAL I/O:
- 2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
- 4 x SATA III Connectors (6Gb/s)
- 1 x USB 3.2 Gen1 (5Gb/s) Header (each header supports 2 USB 3.2 Gen1 ports)
- 1 x Front Audio Header
- 1 x Front Panel Header
- 1 x CPU Fan Connector
- 1 x System Fan Connector
- 1 x 8-Pin Power Connector
- 1 x 24-Pin Power Connector
- 1 x Clear CMOS Header
- 1 x COM Port Header

H/W MONITORING:
- CPU / System Temperature Monitoring
- CPU / System Fan Monitoring
- Smart / Manual CPU Fan Control
- CPU/DDR Voltage Monitoring

DIMENSION:
- Micro ATX Form Factor Dimension: 19.8cm x 24.4cm ( W x L )

OS SUPPORT:
- Supports Windows 10(64bit) / 11(64bit)
- Windows 7(64bit) for Bristol Ridge/ Summit Ridge/ Pinnacle Ridge only7(64bit) / 10(64bit)
*

BUNDLE SOFTWARE:
- BullGuard
- Smart Speed LAN

ACCESSORIES:
- 2 x SATA Cable
- 1 x I/O Shield
- 1 x DVD Driver
- 1 x Quick Guide

Garantia do vendedor: 6 meses
