Descrição

Design robusto oferece anos de serviço confiável

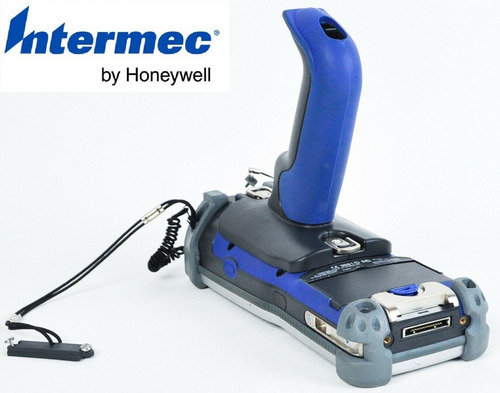

O computador móvel CK61: CK61A da Intermec fornece tudo o que é exigido pelo ambiente de rota difícil, capacidade da bateria para trabalhar o dia todo, design robusto para fornecer anos de serviço confiável, processador de próxima geração e sistema operacional para executar aplicativos complexos e armazenamento persistente não volátil para proteger dados. O CK61: CK61A fornece várias maneiras pelas quais os dados podem ser trocados entre o computador de mão e outros dispositivos. A maioria dos modelos possui conexões Ethernet, host e cliente USB de alta velocidade e RS-232 e um rádio 802.11b / g com certificação Wi-Fi para comunicações sem fio na área local.

Physical Characteristics
Length: 222 mm (8.75 in.)
Width: 90 mm (3.55 in.)
Height at Top/Keypad: 53/36 mm
(2.08 in/1.4 in)
Weight: 704 grams (24.8 oz)
Hardware
Microprocessor: Intel XScale PXA272
Application Processor; 520 MHz
RAM Memory: 64 or 128 MB
Flash ROM: 64 MB
Persistent Store: 128 MB, provides
onboard non-volatile storage of
applications and data
Removable Storage: SDIO Card Slot, user
accessible
Display: Transflective TFT with LED
backlight; 3.8” (97 mm) QVGA Color with
touch panel
Keypad: 32-key with large numeric keys
or 58-key with full alphanumeric keys;
both with LED backlighting
Operating System
Microsoft Windows CE 5.0 or
Microsoft Windows Mobile Software for
Pocket PC*
Software
Development Environments: Embedded
Visual C++ 4.0, .NET Compact Framework
(VB .NET and C#)
Intermec Developers Library: Integrates
with leading development environments;
supports device-specific features and bar
code scanning
Browser support: IE6 compatible
Barcode Scanning
Option of Integrated Laser Scanner, 2D
Area Imager or Integrated 1D & PDF417
Linear Imager*
Supports all popular 1D and 2D
symbologies including Code 39, I 2 of 5,
S 2 of 5, Matrix 2 of 5, Code 128, Code
93, Code 93i, Codabar, Codablock, MSI,
Plessey, UPC, EAN/EAN128, ISBT128, Code
11, RSS, Telepen, PDF417, Micro PDF417,
Macro PDF417, Maxicode, Datamatrix,
QR Code (2D symbologies require Area
Imager)
Standard Communications
USB Host and Client
Ethernet 10/100 Base-T
Bluetooth™ Class 1, V2.0 + EDR
RS232 Serial
IrDA 1.1
Wireless LAN*
Standards Compliant:
IEEE 802.11g (2.4 GHz – OFDM)
IEEE 802.11b (2.4 GHz – DSSS)
Data Rates:
Up to 54 Mbps for 802.11g
Up to 11 Mbps for 802.11b
Radio Power Output: 50 mW
Security: WEP, WPA, 802.1x (EAP-TLS,
TTLS, LEAP, PEAP), 802.11i
Certifications: Wi-Fi, WPA2, Cisco
Compatible Extensions V2
Device Management
SmartSystems Support: Centralized
remote support capability; Configures,
updates and maintains single devices or
entire populations; Real-time or batch,
wired or wireless. Based on Wavelink
Avalanche™ with Intermec value added
utilities.
Power
Battery Type: Removable, rechargeable
Lithium ion; 7.2V, 2400 mAh (17.3 Watthours)
Battery Life: Application dependent
Recharging Cycle: 4 hours or less
Environment
Operating Temperature: -4°F to +122°F
(-20°C to +50°C)
Storage Temperature: -22°F to +158°F
(-30°C to +70°C)
Humidity: 5 to 95%, non-condensing
Electrostatic Discharge: ±8kV Contact
Discharge; ±15kV Air Discharge
Rain and Dust Resistance: IP64 compliant
Drop Survival: Multiple 6 ft (1.8 m) drops
to steel or concrete
Accessories
Communications and charging dock:
Single bay communications dock with
USB/Ethernet or USB/modem capabilities
and auxiliary battery charger; fourposition Ethernet and charge-only
multidocks
Serial adapters: Snap-on adapters for
USB or RS232 peipherals; snap-on adapter
for DEX/UCS connectivity.
Regulatory Approvals
UL and cUL Listed, UL 60950 and UL 1604
and CSA 22.2 No. 157, FCC Part 15, TUV,
CE mark
