Novo

Amplificador Marinizado 5 Canais Jl Audio M700/5

6245 reais con 47 centavos

em 12x 520 reais con 46 centavos sem juros

Frete grátis

Saiba os prazos de entrega e as formas de envio.

Estoque disponível

Informações sobre o vendedor

Localização

Gaspar, Santa Catarina

  • 88

    Vendas nos últimos 60 dias

  • Não oferece um bom atendimento

  • Entrega os produtos com atraso

Ver mais dados deste vendedorAbrirá em uma nova janela

Devolução grátis

Você tem 30 dias a partir do recebimento do produto para devolvê-lo, não importa o motivo!

Garantia

Compra Garantida com o Mercado Pago

Receba o produto que está esperando ou devolvemos o seu dinheiro

Meios de pagamento

Boleto parcelado em até 12x

Mercado Crédito

Cartões de crédito

Mastercard
Hipercard
Elo
Visa

Cartões de débito

Mastercard Débito
Elo Debito
Visa Débito

Pix

Pix

Boleto bancário

Boleto

Características principais

MarcaJL Audio
LinhaM
ModeloM700/5
Potência de saída700 W

Outros

  • Quantidade de canais: 5

  • Classe de módulo: D

  • OEM: JL Audio

Descrição

M700/5

5-Channel Class D Marine System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V

The M700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and it fits comfortably in just about any boat's weather-tight compartments. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also delivering a stout 300 W of power to a subwoofer system. The breakthrough that makes this much power possible in such a small chassis is our NexD™ switching design.

The M700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an HD-RLC remote level control (sold separately), the amplifier's subwoofer channel level or overall level can be directly controlled from a remote location.

This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.

Rated Continuous (RMS) Power @ 14.4 V
Main Channels @ 4 Ω 75 W RMS x 4
Main Channels @ 2 Ω 100 W RMS x 4
Main Channels - Bridged @ 4Ω 200 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

Rated Continuous (RMS) Power @ 12.5 V
Main Channels @ 4 Ω 60 W RMS x 4
Main Channels @ 2 Ω 90 W RMS x 4
Main Channels - Bridged @ 4Ω 180 W RMS x 2
Subwoofer Channel @ 4 Ω 180 W RMS x 1
Subwoofer Channel @ 3 Ω 240 W RMS x 1
Subwoofer Channel @ 2 Ω 300 W RMS x 1
Subwoofer Channel @ 1.5 Ω N/A

General Specifications
Frequency Response (Main Channels) 12 Hz - 22 kHz (+0, -1dB)
Frequency Response (Subwoofer Channel) 10 Hz - 1 kHz (+0, -1dB)
S/N Ratio, referred to highest rated power (Main Channels) >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 Ω >150 / 50 Hz
Damping Factor @ 2 Ω >75 / 50 Hz
THD+N @ Rated Power (Main Channels) <1% @ 2 Ω per Ch.
THD+N @ Rated Power (Subwoofer Channels) <1% @ 2 Ω per Ch.
Input Voltage Range @ RCA Inputs 100 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 60 A (AFS, AGU or MaxiFuse™)

Signal Processing
Filter Mode(s): Channels 1 & 2 (front) High-Pass only
Filter Slope(s): Channels 1 & 2 (front) 12 dB/octave
Filter Frequency Range: Channels 1 & 2 (front) 50 Hz - 5 kHz
Filter Mode(s): Channels 3 & 4 (rear) High-Pass or Bandpass
Filter Slope(s): Channels 3 & 4 (rear) 12 dB/octave
Filter Frequency Range: Channels 3 & 4 50 Hz - 500 Hz
Filter Mode(s): Subwoofer Channel Low-Pass only
Filter Slope(s): Subwoofer Channel 12/24 dB/octave
Filter Frequency Range: Subwoofer Channel 50 Hz - 500 Hz
Detented, Calibrated Filter Freq. Potentiometers Yes
Filter Defeat Function Yes
Infrasonic Filter: Subwoofer Channel none
Remote Level Control Optional (HD-RLC)
Remote Level Modes Sub Ch. or All Channels
Channel Input Mode Switch Yes (2/4/6 ch.)
Pass-Through Preamp Output None
Source Channel Selection for PreOuts N/A

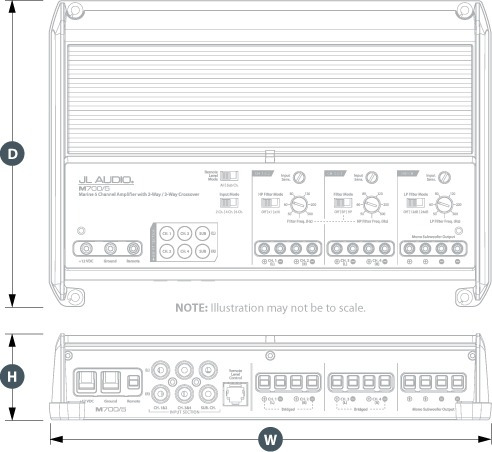

Physical Specifications
Height (H) 2.05 in / 52 mm
Width (W) 10.23 in / 260 mm
Depth (D) 7.09 in / 180 mm
Net Weight 6.15 lb / 2.79 kg
