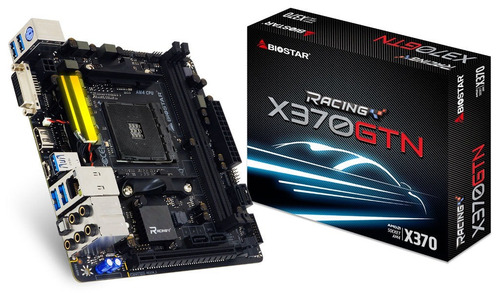

Placa Mãe Biostar X370gtn Amd Am4 Ddr4 Ryzen Mini Itx X370

Descrição

Marca:
Biostar

Modelo:
X370GTN

Processador:
AMD A-series APU / Ryzen CPU / NPU for Socket AM4

Chipset:
AMD X370

Memória:
Support Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz
Support Non-ECC & ECC Un-buffered DIMM Memory modules
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory

Slots de Expansão:
1 x PCI-E 3.0 x16 Slot(x16 for Ryzen CPU only, NPU/APU run at x8 speed)

Armazenamento:
4 x SATA3 Connector
Support SATA RAID: 0,1,10
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(on the back of the motherboard)
* M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & NPU is 16Gb/s.

Portas USB:
1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Port
1 x USB 3.1 Gen1 Header
1 x USB 2.0 Header

Audio:
Realtek ALC892 8-Channel Blu-ray Audio

LAN (rede):
Realtek RTL8118AS - 10/100/1000 Controller
Support Super LAN Surge Protection

Conectores internos:
1 x USB 3.1 Gen1 Header
1 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(on the back of the motherboard)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
2 x 5050 LED Header

Portas traseiras:
1 x PS/2
1 x USB 3.1 Gen2 Type-C Port
1 x USB 3.1 Gen2 Port
4 x USB 3.1 Gen1 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @24Hz or 3840 x 2160 @30Hz
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
5 x Audio Connector
1 x S/PDIF Out Port

Dimensões:
Formato Mini ITX ( 17cm x 17cm )
