Kit I5 7500t + Placa Asus H110m-k + 8gb Ddr4 12x Semjuros

Descrição

Placa Mae Asus H110m-k Memória Ddr4 Socket 1151 Na Caixa






Acompanha caixa, manual, dvd de drivers, espelho e cabos

ESPECIFICAÇÕES




Especificações:
- Capacidade: 8GB
- Tipo: DDR4
- Velocidade: 2133MHz
- CL: 15 Ciclos
- UL Rating: 94 V - 0
- 8GB 2Rx8 1G x 64-Bit
- PC4-2133
- CL15 288-Pin DIMM
- 15-15-15 at 1.2V

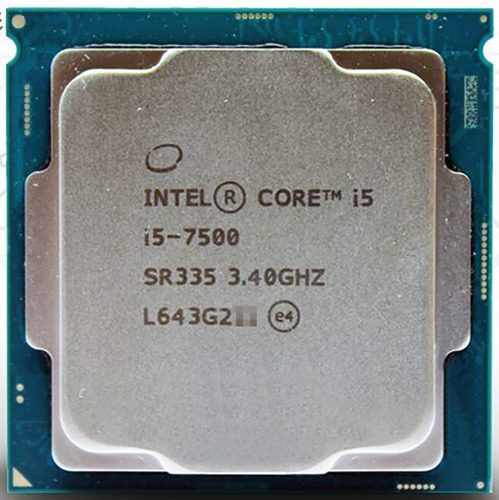

Número do processador

Product Collection 7th Generation Intel® Core™ i5 Processors
Code Name Products formerly Kaby Lake
Vertical Segment Desktop
Processor Number i5-7500
Status Launched
Launch Date Q1'17
Lithography 14 nm
Recommended Customer Price $192.00 - $202.00
Use Conditions Embedded Broad Market Commercial Temp, PC/Client/Tablet

Performance

# of Cores 4
# of Threads 4
Processor Base Frequency 3.40 GHz
Max Turbo Frequency 3.80 GHz
Cache 6 MB SmartCache
Bus Speed 8 GT/s DMI3
# of QPI Links 0
TDP 65 W

Supplemental Information

Embedded Options Available Yes
Datasheet View now

Memory Specifications

Max Memory Size (dependent on memory type) 64 GB
Memory Types DDR4-2133/2400, DDR3L-1333/1600 @ 1.35V
Max # of Memory Channels 2
ECC Memory Supported ‡ No

Processor Graphics

Processor Graphics ‡ Intel® HD Graphics 630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.10 GHz
Graphics Video Max Memory 64 GB
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4)‡ 4096x2304@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x5912

Expansion Options

Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ Up to 1x16, 2x8, 1x8+2x4
Max # of PCI Express Lanes 16

Package Specifications

Sockets Supported FCLGA1151
Max CPU Configuration 1
Thermal Solution Specification PCG 2015C (65W)
TJUNCTION 100°C
Package Size 37.5mm x 37.5mm

Advanced Technologies

Intel® Optane™ Memory Supported ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro™ Platform Eligibility ‡ Yes
Intel® Hyper-Threading Technology ‡ No
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Intel® Identity Protection Technology ‡ Yes
Intel® Stable Image Platform Program (SIPP) Yes

Security & Reliability

Intel® AES New Instructions Yes
Secure Key Yes
Intel® Software Guard Extensions (Intel® SGX) Yes with Intel® ME
Intel® Memory Protection Extensions (Intel® MPX) Yes
Intel® OS Guard Yes
Intel® Trusted Execution Technology ‡ Yes
Execute Disable Bit ‡ Yes
Intel® Boot Guard Yes


Memória:
- Tamanho máximo de memória (depende do tipo de memória: 64GB
- Tipos de memória: DDR4-2133 / 2400, DDR3L-1333/1600 @ 1.35V
- Número máx. de canais de memória: 2

Gráficos:
- Processador Gráfico: Gráficos Intel® HD 630
- Frequência da base de Gráficos: 350,00 MHz
- Frequência Dinãmica máx. de gráficos: 1,10GHz
- Memória Máxima de Video gráfico: 64GB
- Suporta 4K: a 60Hz
- Resolução Máxima (HDMI 1.4): 4096x2304 @ 24Hz
- Resolução máxima (DP): 4096x2304 @ 60Hz
- Resolução máx. (eDP) - Painel Integrado): 4096x2304 @ 60Hz
- Suporte para DirecX: 12
- Suporte OpenGL: 4.4
- Monitores compatíveis: 3

Opções de expansão:
- Ecalabilidade: 1S Somente
- Revisão PCI Express: 3,0
- Configurações PCI Express: Até 1x16, 2x8, 1x8 + 2x4
- Núm máx de PCI Express Lanes: 16

Tecnologias Avançadas:
- Intel® Virtualization Technology (VT-x)
- Proteção do SO
- Extensões de conjunto de instruções: SSE4.1 / 4.2, AVX 2.0
- Tecnologia Intel Turbo Boost: 2.0

CPU


Support for Intel® Core? i7 processors/Intel® Core? i5 processors/Intel® Core? i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)
Chipset

Intel® H110 Express Chipset

Memória

2 x DDR3 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Dual channel memory architecture
Support for DDR3/DDR3L 1600/1333 MHz memory modules
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules

(Please refer "Memory Support List" for more information.)
Gráficos Onboard Integrated Graphics Processor - Intel®HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version.

Maximum shared memory of 1024 MB
Áudio

Realtek® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (10/100/1000 Mbit)

Slots de Expansão

1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

Interface de Armazenamento Chipset:

4 x SATA 6Gb/s connectors

USB Chipset:

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Conectores Internos I/O

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.0/2.0 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x Clear CMOS jumper

Conectores Painel Traseiro

1 x PS/2 mouse port
1 x PS/2 Keyboard port
1 x D-Sub port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

Controlador I/O

iTE® I/O Controller Chip

Monitoramento H/W

System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating warning
CPU/System fan fail warning
CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

1 x 64 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Exclusivas

Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
Support for Q-Flash
Support for Smart Switch
Support for Xpress Install

Pacote de Software

Norton® Internet Security (OEM version)
cFosSpeed

Sistema Operacional

Support for Windows 10/8.1 64-bit
Support for Windows 7 32-bit/64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor

Micro ATX Form Factor; 22.6cm x 17.4cm


Bancos que Trabalhamos :

BRADESCO

ITAU



Leilão é coisa séria e tem custos para quem vende,só dê lance se tem certeza de comprar, no caso de desistência a qualificação do comprador será NEGATIVA:



Caso tenha qualquer dúvida, faça uma pergunta antes de dar o lance.



Garantias

Todos os produtos estão funcionando e em perfeito estado:

tem 6 meses de garantia
a garantia não cobre mau uso, descargas elétricas, avarias físicas (trincos, riscos e similares)

Garantia do vendedor: 6 meses
