CaracterĂ­sticas do produto

CaracterĂ­sticas principais

É kit de fábrica
NĂŁo
Marca
IBM
Modelo
Power7 P740

Outros

É gamer
NĂŁo
Otimizado para IA
NĂŁo

Descrição

Produto usado
Pode ter marcas de uso, apresentar danos que afetam o funcionamento do produto e não incluir embalagem ou os acessórios originais. Confira em detalhes a descrição ou pergunte ao vendedor para saber mais informaçÔes.

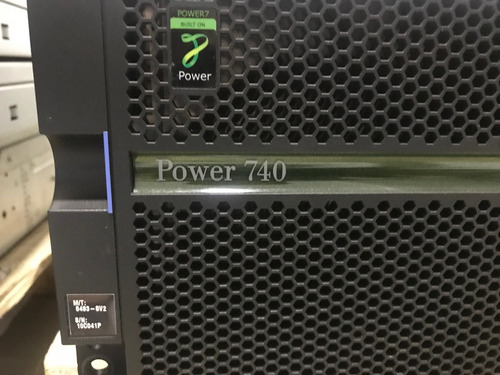

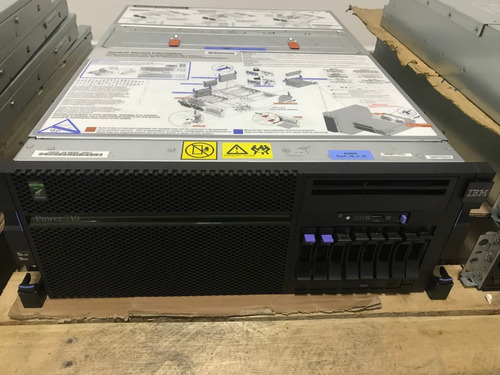

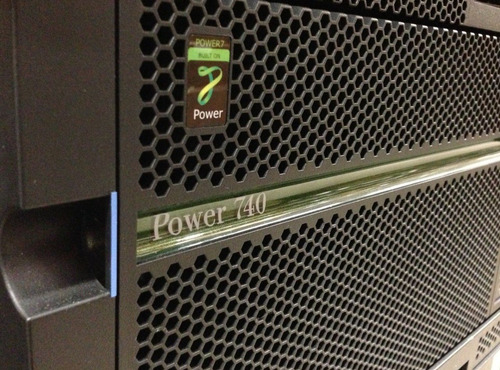

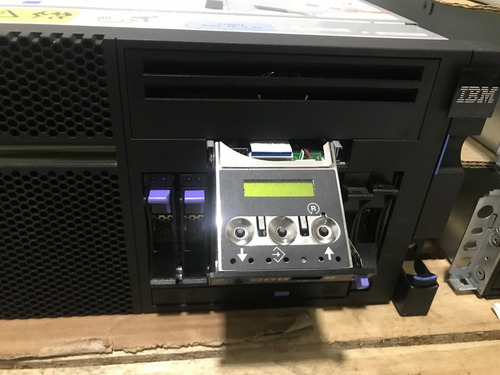

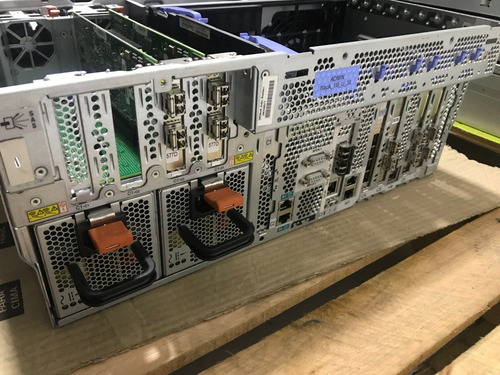

Equipamento em perfeito estado sem detalhes, retirado em produção, com trilhos originais, moldura frontal sem trincados ou ou riscos.

Especificação do modelo anunciado:

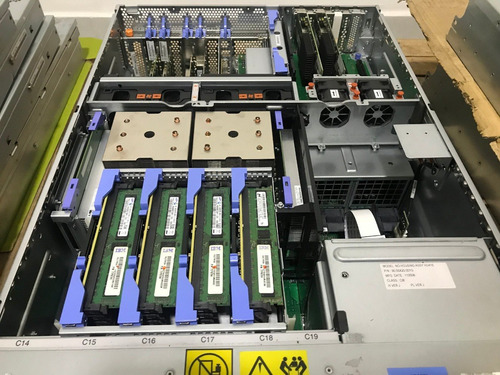

- 2x Processadores 8 Octacore 3.0Ghz (8202-E4C)

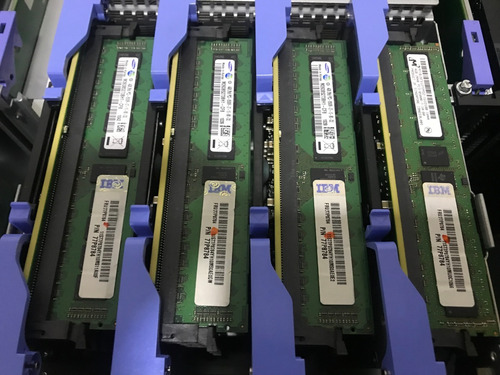

- 128GB RAM em mĂłdulos de 4GB PC3L-8500R (original de fĂĄbrica)
- 2x Hds 300GB SAS 10k Ibm

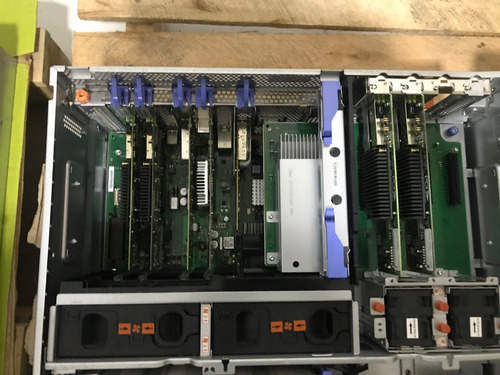

- 4x Hba's 8Gbps LPE12002
- 1x Ethernet Quadport 1Gbps

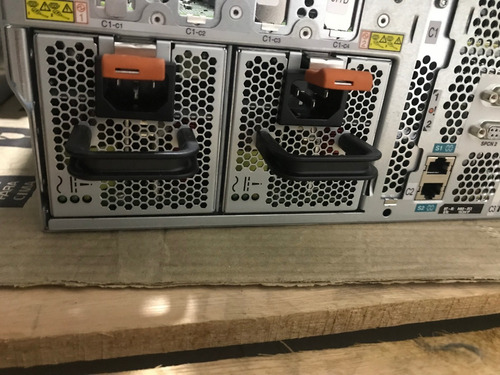

- 2x Fontes Redundantes
- Jogo de Trilhos originais e organizador de cabos
- Jogo de Cabos AC

Garantia de 6 meses e nota fiscal eletrĂŽnica para PJ ou PF. Qualquer dĂșvida estamos a disposição.

InformaçÔes do Fabricante:

The IBM Smart Analytics 7700 offers:

Packaged solution:
IBM POWER7 Server Models SV2, CR6, RS3, T42
Data, User, Failover, Administration and Cognos server nodes: 8493-SV2
Hardware Management Console (HMC): 8493-CR6
Remote Support Manager (RSM): 8493-RS3
19-inch Rack: 8493-T42
IBM data warehouse management software
IBM Services
Mainframe-inspired reliability and availability
AIX operating system



Descrição completa:

IBM POWER7 System hardware is packaged as two machine types, 8492 and 8493. The 8492-DW2 is the Management server node and also the 8492-DW2 is the account System Integration Unit (SIU). The SIU is the server within an account used for license, inventory, and scheduling control.

The 8493-SV2 is defined as either the Data, User, Failover, Administration, Cognos, or Application server node. Additional 8493 models provide components of the offering: rack (8493-T42), HMC (8493-CR6), and storage Remote Support Manager (RSM) (8493-RS3).

The operating system is AIX 6.1 with the 6100-06 Technology Level.

Common single rack configuration:

8492-DW2: POWER7 System management server node
SAS Disk Drives
Pair of Ethernet Switches
8493-T42: POWER7 System 19-inch rack
8493-CR6: POWER7 System HMC
8493-RS3: POWER7 System RSM
Common multi-rack configuration:

8492-DW2: POWER7 System as management server node
One or more 8493-SV2 as Data, User, Failover, Administration, Cognos, or Application server nodes
SAS Disk Drives
Pair of SAN Switches
8493-T42: POWER7 System 19-inch Rack
Foundation components of 8493-SV2:

Data, User, Failover, Administration server defines:
Data server (#8942)
User server (#8943)
Failover server (#8944)
First User server (#8945)
Two - 8-core 3.55 GHz processor with 16 processor activations
16 - 8 GB DDR3 memory DIMMs, 1066 MHz, 1GB DDR3 DRAM
Four - Memory Riser + VRM, 8x DIMM Sockets
Cognos and Application server defines:
Cognos server (#8946)
Cognos server Extension (#8947)
Application server (#8948)
Two - 4-core 3.72 GHz processor with eight processor activations
Four - 8 GB DDR3 memory DIMMs, 1066 MHz, 1GB DDR3 DRAM
Four - Memory Riser + VRM, 8x DIMM Sockets
One - Dual-port RJ45 10 Gb HEA daughter card (Fiber) .ONE
One - PCIe Riser Card Expansion Feature
One - Disk Media Backplane -- 6 SSF Bays / No RAID
Two - 1725 Watt AC, Hot-swap power supplies
One - IBM Rack-mount Drawer Bezel and hardware
Additional 8493-SV2 features:

Two - 300GB 10K RPM SFF SAS Disk Drives (#1885)
PCIe RAID & SSD SAS Adapter 3GB with Blind Swap Cassette and 4 x 177GB SSD Module with EMLC, (#2057)
PCIe RAID & SSD Adapter with 4 177GB SSD modules, Low-profile, (#2058)
GX++ Dual-port 12X Channel Adapter (#5615)
12x PCIe I/O Expansion Drawer, No Disk (#5877)
8.0m 12x DDR Cables for 12x PCIe I/O Expansion Drawer (#1865)
PCIe 1Gb 4-Port Base-TX Express Adapter (#5717)
PCIe LP 8Gb 2-Port Fibre Channel Adapter (#5273)
PCIe 8Gb 2-Port Fibre Channel Adapter (#5735)
PCIe 10Gb 2-Port FCoE Adapter (#5708)
Integrated Storage Controller with 24 - 300GB 2.5-inch, 10K RPM drives (#1135)
Pair of Storage SAN switches (#2498)
Juniper EX4200 1GB Ethernet switch (#1108)
EX4500 10GB Optical Transceiver (#1148)
Pair of Fibre Channel cables for SAN switches (#2701, #2703, #2710, and #2725)
3m, 10m, 25m Ethernet cables (#1111, #1112, #1113, #1115, #1116, #1117, #1118, #1119 and #1121)
5', 9', 14' IBM PDU Line Cord (#6672, #6671, and #6458)
Line Cord, Drawer to IBM PDU, 200-240V/10A (#6577)
Smart Analytics Specify (#0710 or #1114)
Language Group Specify features ( #9300 or #97xx)
Other miscellaneous hardware and specify features
An Optional Rack Security Kit (#6580) is available for the 8493-T42.
