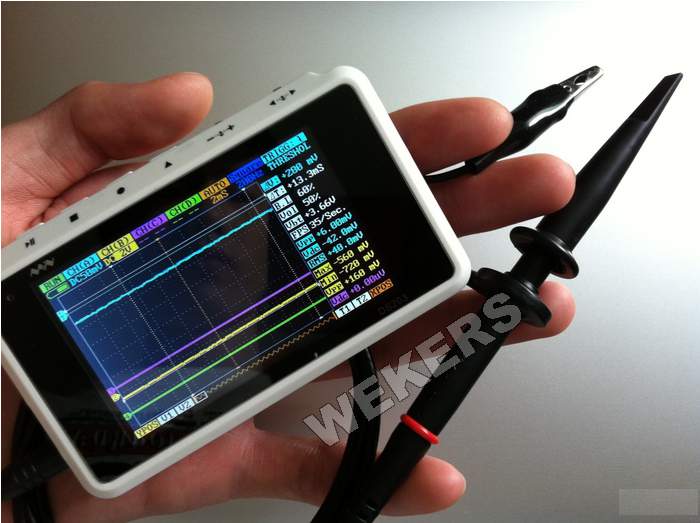

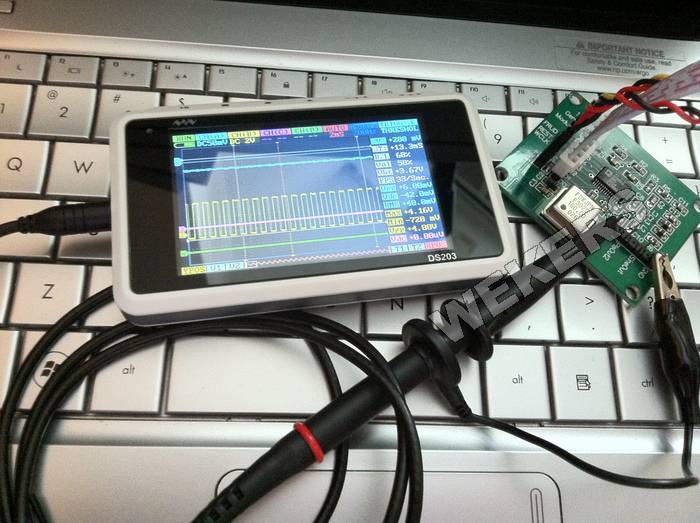

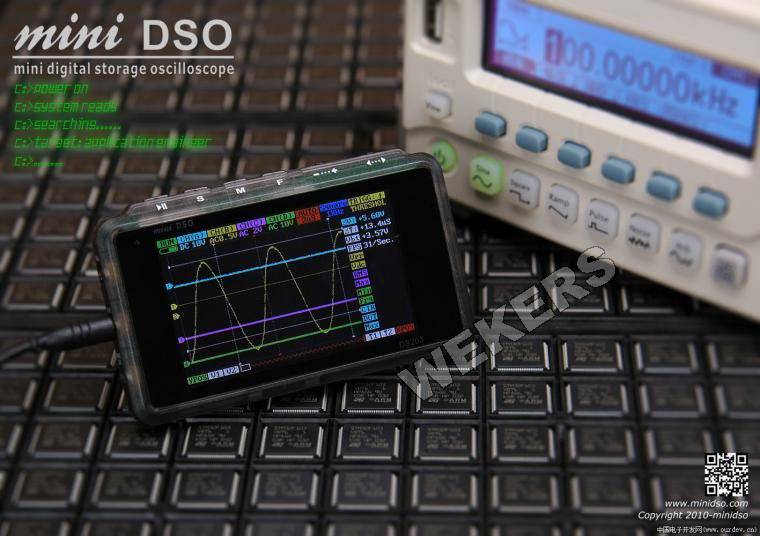

DSO 203 OSCILOSCÓPIO DIGITAL PORTATIL DE 4 CANAIS
(2 canais analógicos + 2 canais digital)
Description
Fulfilling the basic engineering requirements, DSO 203 is a pocket-sized 4 channel digital storage oscilloscope for common electronic engineering tasks.
DSO 203 is based on ARM cortex M3 (STM32VCT6), providing 72 MHz analog bandwidth with integrated FPGA and high speed ADC, equipped with 400*240 TFT LCD widescreen ,USB connection and rechargeable battery. Convenient to carry as it weights only 80g without battery.
It is definitely the BEST CHOICE for daily electronic engineering.
Features

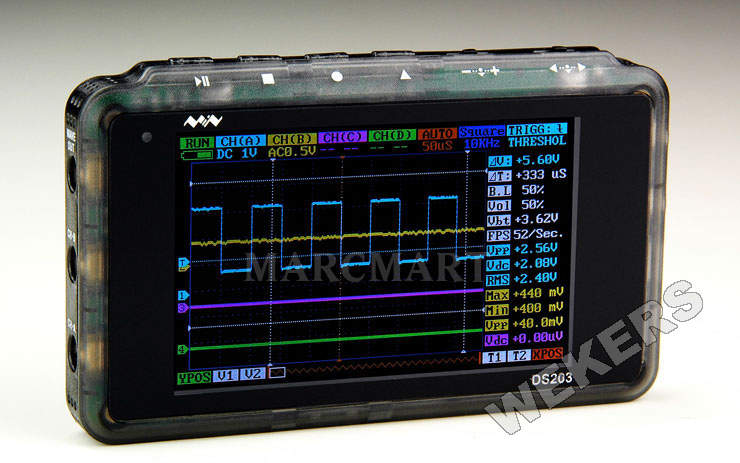

1. 3" 240 × 400 widescreen color TFT LCD screen, STM32 is the master MCU, with the FPGA to implement the control and management of external ADC and data cache.
2. MCU and the FPGA are selected QFP100 package, ADC selected QFP48 package.
3. 36M+36M sampling frequency, the use of the ADC AD9288-40 chip, single-channel maximum sampling frequency of the 72M.
4. FIFO RAM has a maximum operating frequency of use of> 200MHz low-power FPGA to achieve.
5. The AD9288-40 Overclocking to achieve 72M+72M sampling frequency, so that the maximum single-channel sampling rate up to 144M.
6. Analog channel circuit using unity gain> 150MHz op amp, so the actual 30MHz analog bandwidth is expected to do more.
7. As low power, low-cost, QFP package and other conditions of the FPGA, storage capacity is not large, so DSO203 sampling depth of the current situation for the multi-channel 4096 points per channel, single-channel work cases, 8192 points.
Specification
1.Analog channel * 2 : [CH_A] [CH_B];
2.Digital channel * 2 : [CH_C] [CH_D];

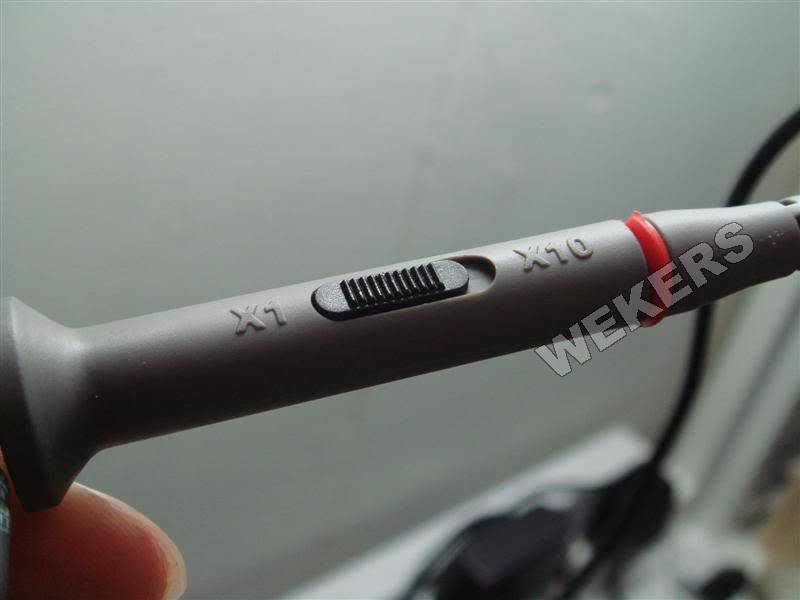

3.Vertical Scale: 20mV-10V/div (x1 probe);
4.Vertical solution: 8 bit ;
5.Input coupling: AC/DC ;
6.Max input voltage: 80Vpp (x2 probe);
7.Storage: 4K per channel
8.Software trigger type: edge, pulse, level (to be added)
9.Hardware trigger type: edge
10.Trigger source: CH1/CH2/EXT
11.Test Signal generator: 10Hz to 1Mhz
12.Storage: internal 2MB USB disk
13.Auto measure: Vmax, Vmin, Vpp, Vavr, Vrms, Freq, Period, Pulse, Duty
14.Cursor measurement: Level, Voltage
15.Display mode: CH1, CH2, EXT, CH1+CH2, CH1-CH2, CH1*CH2
16.Sampling mode: real time
17.Sampling rate: 1kSa/s - 72MSa/S
18.Power: Li-ion battery
19.Dimension: 98 * 60 * 14.5 mm
20.Weight: 80g (without battery)
21. 100% user application and easy upgrade firmware.
Acompanha:
1x DSO203/Quad c/ bateria

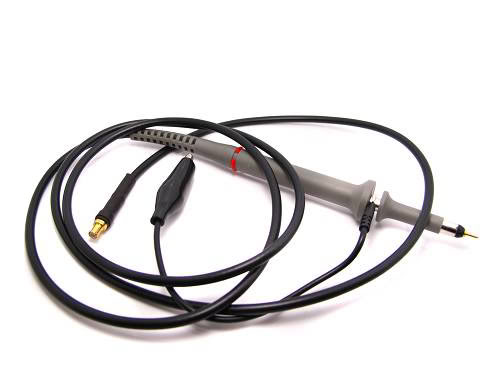

2x Ponta Prova MCX 10x
1x Mini cabo USB
1x Case Protetor
Resume Features:
1) 2 probe connectors
2) 4 inputs & 4 tracks (2 analog 2 digital)
3) A custom waveform output (including the built-in sine, square, triangle)
4) Built-in 2M USB disk
5) Very low power consumption
Frequently Asked Questions
Q: If this is a beta run, will the device be firmware upgradeable (via USB) when and if bugs are found?
A: Sure, just copy the firmware onto internal USB disk, press ">" while booting up to upgrade.
Q: What are the user applications?
A: [No official answer] As far as I know, there will be the possibility to boot up different applications that you can store on the U-Disk. I'll add a section to this page collecting ideas for user applications.
Q: What is the battery life?
A: It's 1200mAH, 3.7V
